General Condition:
The body is in overall good condition, with minor signs of previous use.
The original leather covering is in very good condition.
The focusing hood works great as it should.
The focussing screen has been replaced by a new BrightScreen MPD with line spacing pattern. The MPD screen is best with eye level finders, geometric subjects such as architecture, and for general photography. We find it very comfortable to use even in bright sunny day.
Both lenses are in good condition without fungi, haze or separation.
There are some light cleaning marks on the taking lens that have no effect on the picture quality (check the picture gallery taken with the camera in our final test)
The Synchro-compur shutter has been cleaned and re-lubricated and now works very well at all speeds.
The self timer is operational .
The flash connection has been tested and works fine.
What we've done:
We did a full overhaul of the camera.
The front and the optical elements have been disassembled and cleaned up.
The cranking system has been fully overhauled, cleaned up, lubricated and tested.
Same for the focussing sytem which has been adjusted after full overhaul, cleaning and lubrication.
We fully checked the camera and all movements are fine.
IMPORTANT: IF YOU ARE NOT FAMILIAR WITH ROLLEIFLEX AUTOMAT, HERE IS A LINK ON HOW TO LOAD THE FILM. PLEASE READ CAREFULLY.

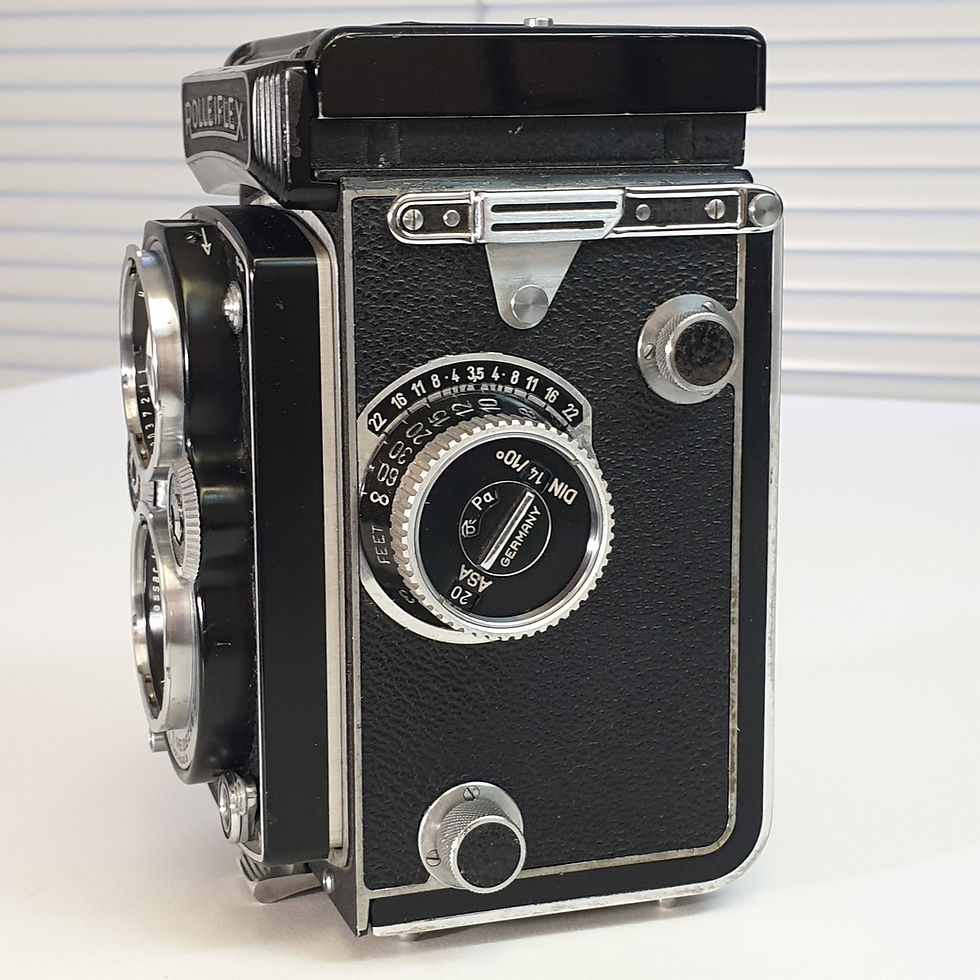

Rolleiflex 3.5B MX-EVS AUTOMAT type K4B. Fully serviced and tested!
Serial Number 1715680
Production : from 1954 to 1956, about 94.000 units
Format : 12 exposures of 6 x 6 cm on 120 type roll film.
Furthermore a Plate adapter for sheet film and a Rolleikin adapter for 35mm film cartridges can be used.Taking lens:
Carl Zeiss Jena Tessar 1:3.5 f=75mm.
Viewing lens: Heidosmat 1:2.8 f=75mm, coated
Shutter: Synchro-Compur MX CR00 leaf shutter. Speeds 1 to 1/500 sec. and B.
Flash synchronization : Sync socket on front panel. M and X synchronizationFilter Bayonet : Both lenses, size 1.
Parallax error correction.
SelftimerExposure adjustments now with an Exposure Value Scale (EVS)
Switch to overrule the Double Exposure Prevention
Color Lacquer : Black
Color Leatherette : BlackMemo disc on Focus knob
Dimensions WxDxH: 99 x 96 x 146 mm
Weight: 980 gramsUse of Rolleifix (tripod attachment) possible
